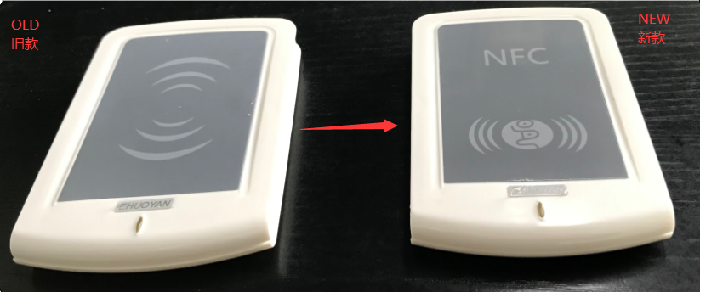

| HF Rfid Reader/Writer USB ER301+eReader |
|
<< Back |
|
| |
 |
|
|
|
| |
|
| Special: |
·MIFARE® Classic 1k(MF1 ICS50), MIFARE® Classic 4k(MF1 ICS70) card;
·RF Frequency: 13.56 MHz;
·Typical time of command;<35ms;
·Operating distance: up to 10 cm;
·Communications Interface: USB;
·Two LED indicators(software controlled);
·Communications Interface: USB;
·Buzzer alarm (software controlled);
·Software pack:
SDK (C#,VB,VC,DELPHI- demo program and source code)
Demo program - show how to read and write data from the tag
source code - speed up software development time
detail DLL command set
data sheet & user manual
USB to virtual com driver
| Smart Card Supported: |
ISO 14443A:MIFARE® Classic 1k(MF1 ICS50), MIFARE® Classic 4k(MF1 ICS70) |
| IRF speed: |
212 kbps |
| Interface: |
USB |
| Supply Voltage: |
5V DC(USB power) |
| Supply Current: |
42mA(operating);22mA(close port);60mA(maximum) |
| Typical Operating Distance: |
Up to 10cm(depends on the tag type) |
| Operating Temperature: |
-10℃ ~ + 50℃ |
| Storage Temperature: |
-20℃ ~ + 70℃ |
| Dimensions: |
120mm(L)×80mm(W)×16mm(H) |
| Weight: |
100g(including USB Cable) |
| System: |
Win7, Win10, Android |
| Technical Documents Download |
|
|
|
|
